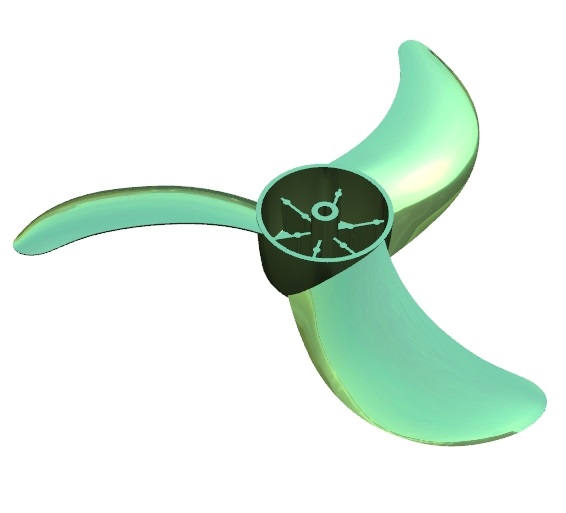

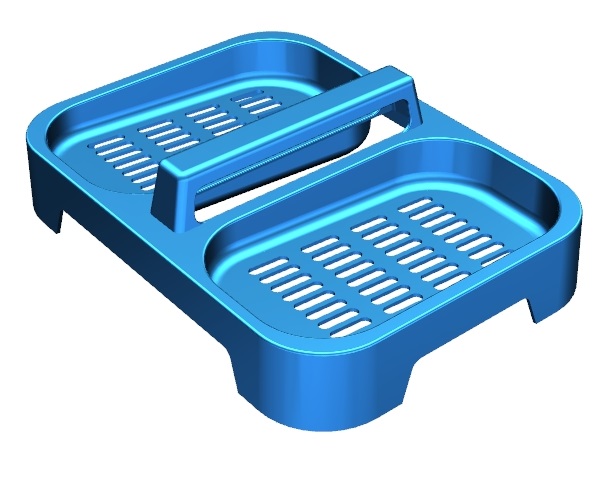

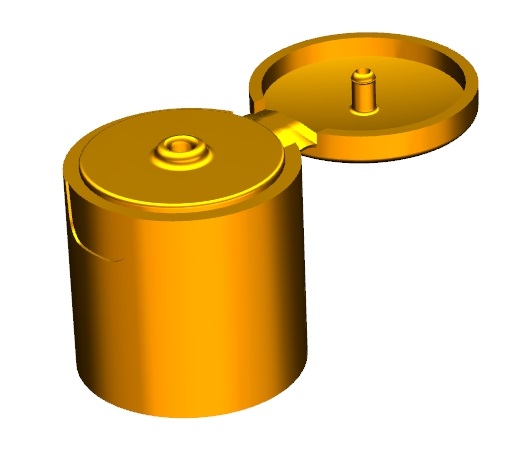

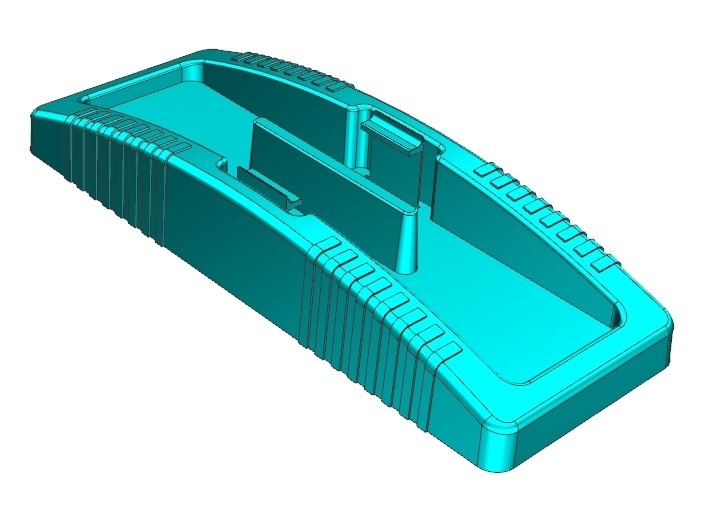

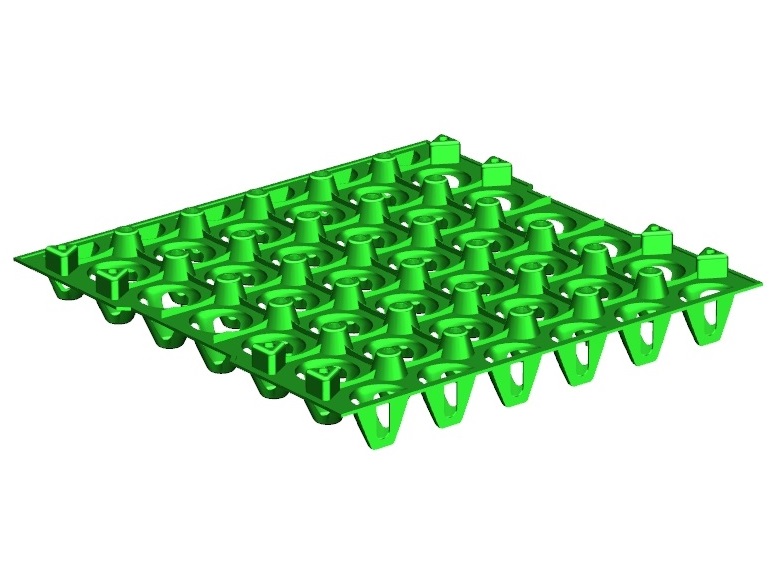

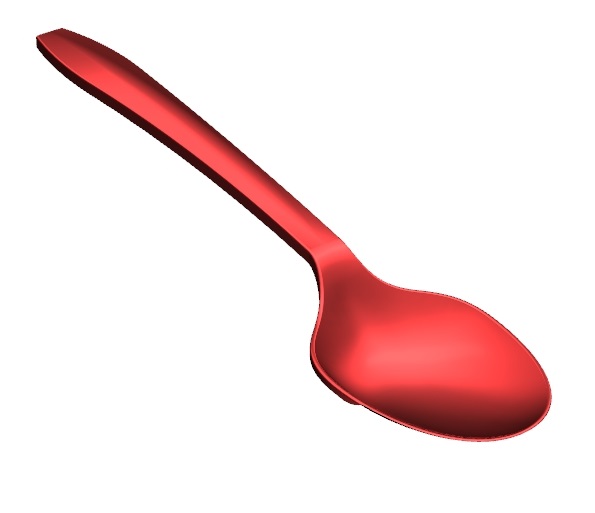

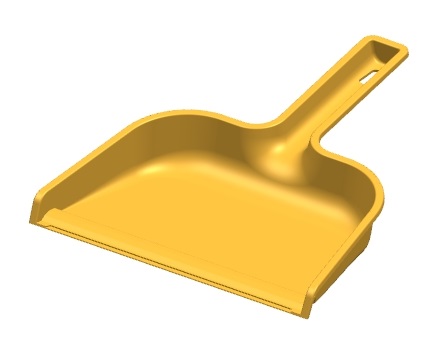

3D Part Design
You will Get 3D Design CAD File For:
Plastic, Sheet Metal, Aluminum, Rubber
CAD Format : Parasolid, STEP, IGES

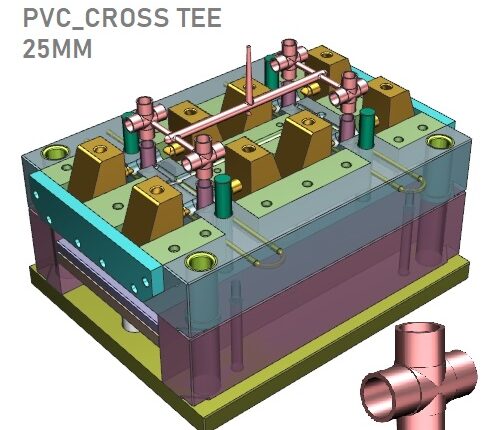

Tool Design
You will Get 3D CAD Tool Design:
Plastic Mold Tool Or Sheet Metal Die
JIG & Fixture or Gauges
Manufacturing Drawing
You will Get Manufacturing Drawing for Component & Tool.
Drafting Data for:
Component, Tool, & EDM Electrode
EDM Electrode Design
You will Get EDM Electrode Design Data :
3D Data
2D Drafting Data
Bill Of Material
You will Get Complete Bill Of Material:
Parts Name, Qty., Material, Remark, Rendering Images
